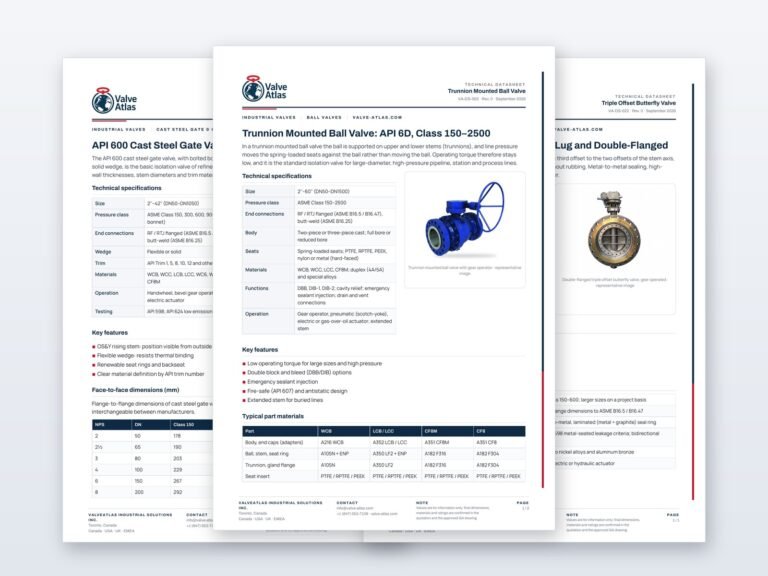

ValveAtlas publishes a technical datasheet (PDF) for each of its 34 industrial valve series. Each datasheet sets out the specification of the series: design standards, pressure class or PN rating, materials, end connections and operation. Many also include face-to-face dimension tables, part materials and trim options. All datasheets are free to download, in English, with no registration.
34 datasheetsAPI · ASME · BS · ENPDF · EnglishFree download
34Datasheets (PDF)
11Product categories
1–3Pages per datasheet
FreeNo registration
What each datasheet includes
- Technical specifications: size range where defined, pressure class or PN rating, end connections, materials and operation
- Design and testing standards for the series, such as API 600, API 6D, API 594, API 609, BS 1873, EN 13709, API 598 or EN 12266-1
- Key features that matter in selection, for example fire-safe design, cavity relief or zero stem leakage
- Dimension and material tables on the main cast and forged steel series: face-to-face dimensions, typical part materials and trim options
- A document number and revision (VA-DS-001 to VA-DS-034), so the datasheet can be referenced in a valve list or a bid
Values are for information only. Final dimensions, materials and ratings are confirmed in the quotation and in the approved general arrangement (GA) drawing.
Datasheets by product category
Each row links to the valve series page and to its PDF datasheet. Key data is a summary; the datasheet and the series page give the full specification.
Ball valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Floating Ball Valve | ½” to 10″ (DN15–DN250) · Class 150–600, higher classes in small forged sizes · API 6D / ISO 17292 · API 607 fire-safe | VA-DS-001 · 2 pages Also: part materials |
| Trunnion Mounted Ball Valve | 2″ to 60″ (DN50–DN1500) · Class 150–2500 · API 6D, ASME B16.34 · DBB / DIB options | VA-DS-002 · 2 pages Also: part materials, catalog data |
| Forged Steel Trunnion Ball Valve | 2″ to 60″ (DN50–DN1500) · Class 150–2500 · API 6D, ASME B16.34 · API 607 fire-tested design | VA-DS-003 · 2 pages Also: catalog data, part materials |
| Metal Seated Ball Valve | Class 150–2500 by type and size · floating or trunnion mounted · metal-to-metal seats with tungsten or chromium carbide coating | VA-DS-004 · 1 page Also: catalog data |
Cast steel gate and globe valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| API 600 Cast Steel Gate Valve | 2″ to 42″ (DN50–DN1050) · Class 150–900, bolted bonnet · API 600 / ISO 10434, ASME B16.34 · API 598 testing | VA-DS-006 · 3 pages Also: face-to-face dimensions, part materials, API 600 trims |
| Pressure Seal Gate Valve | Class 900, 1500 and 2500 · pressure seal bonnet · ASME B16.34 · mainly butt-weld ends, RTJ flanged option | VA-DS-007 · 2 pages Also: catalog data, API 600 trims |
| API 6D Slab Gate Valve | 1″ to 40″ (DN25–DN1000) · Class 150–900 · API 6D, ASME B16.34 · through-conduit, piggable | VA-DS-009 · 1 page Also: catalog data |
| BS 1873 Cast Steel Globe Valve | ½” to 16″ (DN15–DN400) · Class 150–2500 · BS 1873, ASME B16.34 · API 598 testing | VA-DS-012 · 2 pages Also: face-to-face dimensions, part materials |
| Bellows Seal Globe Valve | Multi-ply stainless steel bellows with backup packing for zero stem leakage · flanged (EN 1092-1 or ASME B16.5), butt-weld or socket-weld ends | VA-DS-015 · 1 page |
| Angle Globe Valve | 90° body with flat or plug disc · cast (WCB, WC6, CF8M) or forged (A105N, F316) body · flanged, butt-weld or socket-weld ends | VA-DS-016 · 1 page |
API 602 forged steel valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| API 602 Forged Steel Gate Valve | ½” to 2″ (DN15–DN50) · Class 800 and 1500 (API 602), Class 2500 to ASME B16.34 · API 602 / ISO 15761 | VA-DS-008 · 2 pages Also: standards and construction, material combinations |
| API 602 Forged Steel Globe Valve | ½” to 2″ (DN15–DN50) · Class 800 and 1500 (API 602), Class 2500 to ASME B16.34 · API 602 / ISO 15761 | VA-DS-013 · 2 pages Also: standards and construction, material combinations |
| API 602 Forged Steel Check Valve | ½” to 2″ (DN15–DN50) · Class 800 and 1500 (API 602), Class 2500 to ASME B16.34 · lift (piston), ball and swing types | VA-DS-019 · 2 pages Also: standards and construction, material combinations |
Industrial check valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Swing Check Valve | 2″ to 60″ (DN50–DN1500) · Class 150–2500 · BS 1868 / API 6D, ASME B16.34 | VA-DS-017 · 2 pages Also: face-to-face dimensions, part materials |
| Dual Plate Wafer Check Valve | Class 150–2500 · API 594 · wafer, lug or double-flanged; retainerless or pinned design | VA-DS-018 · 2 pages Also: API 594 face-to-face dimensions, part materials |
| Axial Flow Nozzle Check Valve | 2″ to 60″ (DN50–DN1500) · Class 150–1500 · API 6D, ASME B16.34 · non-slam closing | VA-DS-021 · 2 pages Also: face-to-face dimensions, part materials |
Industrial butterfly valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Triple Offset Butterfly Valve | 3″ to 48″ (DN80–DN1200) · Class 150–600 · API 609 Category B · metal-to-metal, laminated or solid seal ring | VA-DS-022 · 1 page Also: catalog data |
| High Performance (Double Offset) Butterfly Valve | 3″ to 48″ (DN80–DN1200) · Class 150–600 · API 609 Category B, double offset · RPTFE or metal seats | VA-DS-023 · 1 page Also: catalog data |
| Rubber-Lined (Concentric) Butterfly Valve | 2″ to 60″ (DN50–DN1500) · PN10–PN16 · API 609 Category A / EN 593 · EPDM, NBR or FKM liner | VA-DS-024 · 1 page Also: catalog data |
Cryogenic valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Cryogenic Ball Valve | Down to −196 °C (−321 °F) · BS 6364 / ISO 28921-1 · extended bonnet, cavity relief · floating or trunnion mounted | VA-DS-025 · 1 page |
| Cryogenic Gate and Globe Valves | Down to −196 °C (−321 °F) · BS 6364 / ISO 28921-1 · extended bonnet · gate (OS&Y) or globe | VA-DS-026 · 1 page |
Stainless steel valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| API 603 Stainless Steel Gate Valve | Class 150, 300 and 600 · API 603, API 598 testing · CF8, CF8M, CF3 and CF3M bodies | VA-DS-011 · 1 page |
| Threaded Stainless Steel Ball Valve | ¼” to 2″ (DN8–DN50) · 1000 WOG · 2-piece and 3-piece · BSP or NPT threads | VA-DS-027 · 1 page |
| Stainless Steel Flanged Ball Valve | DN15–DN100 standard · PN16, PN40 (EN 1092-1) or Class 150, 300 (ASME B16.5) · ISO 5211 mounting pad | VA-DS-028 · 1 page |
DIN / EN valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| DIN / EN Flanged Ball Valve | PN16–PN100 · EN 1092-1 flanges, EN 558 face-to-face · EN 12266-1 testing · floating or trunnion mounted | VA-DS-005 · 1 page Also: standards and test pressures |
| DIN / EN Gate Valve | PN16–PN64 · EN 1092-1 flanges, EN 558 face-to-face · EN 12266-1 testing · bolted bonnet, rising stem | VA-DS-010 · 1 page Also: standards and test pressures |
| DIN / EN Globe Valve | PN16–PN64 · DIN 3356 / EN 13709 · EN 558 face-to-face, EN 1092-1 flanges | VA-DS-014 · 1 page Also: standards and test pressures |
| DIN / EN Check Valve | PN16–PN64 · swing and lift types · EN 1092-1 flanges, EN 558 face-to-face · EN 12266-1 testing | VA-DS-020 · 1 page Also: standards and test pressures |
Special alloy valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Duplex and Super Duplex Valves | Forged F51 (2205), F53 (2507), F55; cast ASTM A995 4A, 5A, 6A · ball, gate, globe, check and butterfly valves | VA-DS-033 · 2 pages Also: alloy and material program |
| Nickel Alloy Valves | Alloy 600, 625, 400, K500, C276 and Nickel 200 · ball, gate, globe, check, knife gate and triple offset butterfly valves · full alloy body or alloy trim | VA-DS-034 · 2 pages Also: alloy and material program |
Actuated valves
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Pneumatic Actuated Valve | Rack and pinion or scotch-yoke · double-acting or spring return · ISO 5211 / NAMUR · ATEX options | VA-DS-031 · 1 page |
| Electric Actuated Valve | Quarter-turn and multi-turn · on-off or modulating (4–20 mA / 0–10 V) · 24 V DC, 230 V AC, 380 V AC · IP67 / IP68, ATEX Ex d options | VA-DS-032 · 1 page |
Industrial strainers
| Valve series | Key data | Datasheet (PDF) |
|---|---|---|
| Y Strainer | PN16, PN40 or Class 150, 300 · flanged, threaded or butt-weld · 304 / 316 screen | VA-DS-029 · 1 page |
| Basket Strainer | Simplex or duplex · flanged (EN 1092-1 / ASME B16.5) · carbon or stainless steel body, 304 / 316 basket | VA-DS-030 · 1 page |
Using a datasheet to check a valve against your specification
- Match the design standard and pressure class to the piping class of the line, for example API 600 Class 300 or EN 13709 PN40.
- Check body and trim materials against the fluid, the temperature range and any sour-service requirement (NACE MR0175 / ISO 15156).
- Confirm end connections and face-to-face dimensions (ASME B16.10 or EN 558) so the valve fits the line.
- List the test and document requirements: API 598 or EN 12266-1 pressure tests, EN 10204 3.1 certificates and fire-test certificates where needed.
- Send the valve list with the datasheet numbers. We confirm every line item and state any deviation from your specification in writing in the quotation.
