Fire Pumps & Boosters

ETNAUL Listed & FM Approved UF Series

Fire Pumps & Boosters

ETNA UF Series — UL Listed (UL 448) and FM Approved (FM 1319) fire pump packages compliant with NFPA 20 and EN 12845. End-suction EA series (250–1,000 GPM, UL + FM) and split-case ESC series (500–2,000 GPM, UL Listed) delivered as complete sets with pump, UL/FM listed diesel engine or electric motor, UL/FM approved control panel, jockey pump and system accessories. 46+ years of pump-engineering experience.

UL ListedFM ApprovedUL 448FM 1319NFPA 20EN 12845

Toronto-based · Canada · US Northeast (NYC, Boston) · London UK

FM
1319

FM Approval — Certificate of Compliance PR468288 Centrifugal Fire Pumps (Horizontal, End Suction Type) · Approval Class 1319 · Granted 12 June 2024 · Manufactured by ALP Pompa Teknolojileri A.Ş. (ETNA’s pump arm, Ümraniye, Istanbul, Turkey) · Listed at www.approvalguide.com

ETNA UF Series — End-Suction & Split-Case Fire Pumps

UF Series pumps are delivered as complete factory-assembled sets including driver (diesel or electric), control panel, pilot/jockey pump, and standard fire-pump system accessories. Pump performance verified per UL 448 and FM 1319 test conditions. Main pump dimensions per DIN 24256; flanges per ISO 7005 PN16 (ANSI/ASME B16.1 Class 300 optional).

EA Series — End-Suction Fire Pumps UL Listed & FM Approved

Single-stage, end-suction centrifugal pumps with enclosed impeller (Bronze CuSn10). Suction-discharge flange sizing per DIN. Maximum working pressure to 290 psi (20 bar) on EA 80-32 and EA 100-32 variants.

Model	Rated Capacity	Size (Suction – Discharge)	Net Rated Pressure	Speed	Max Working Pressure
EA 65-26	250 GPM	DN80 – DN65	94–133 psi (6.5–9.2 bar)	2,950 RPM	166 psi (11.5 bar)
EA 65-26	300 GPM	DN80 – DN65	93–131 psi (6.5–9.2 bar)	2,950 RPM	166 psi (11.5 bar)
EA 65-26	400 GPM	DN80 – DN65	90–128 psi (6.2–8.8 bar)	2,950 RPM	166 psi (11.5 bar)
EA 65-26	500 GPM	DN80 – DN65	84–123 psi (5.8–8.5 bar)	2,950 RPM	166 psi (11.5 bar)
EA 80-32	500 GPM	DN100 – DN80	127–196 psi (8.8–13.5 bar)	2,950 RPM	290 psi (20 bar)
EA 100-32	750 GPM	DN125 – DN100	115–174 psi (7.9–12 bar)	2,950 RPM	290 psi (20 bar)
EA 100-32	1,000 GPM	DN125 – DN100	149–169 psi (10.2–11.6 bar)	2,950 RPM	290 psi (20 bar)

ESC Series — Horizontal Split-Case Fire Pumps UL Listed

Double-suction horizontal split-case configuration for high-flow applications. Maximum working pressure up to 400 psi (27.6 bar) on ESC 100-375 variant.

Model	Rated Capacity	Size (Suction – Discharge)	Net Rated Pressure	Speed	Max Working Pressure
ESC 100-250	500 GPM	DN150 – DN100	80–140 psi (5.5–9.7 bar)	2,900 RPM	232 psi (16 bar)
ESC 100-310	500 GPM	DN150 – DN100	130–204 psi (9–14 bar)	2,900 RPM	290 psi (20 bar)
ESC 100-375	500 GPM	DN150 – DN100	215–300 psi (15–21 bar)	2,900 RPM	400 psi (27.6 bar)
ESC 100-250	750 GPM	DN150 – DN100	73–139 psi (5–9.6 bar)	2,900 RPM	232 psi (16 bar)
ESC 100-310	750 GPM	DN150 – DN100	125–198 psi (8.6–13.7 bar)	2,900 RPM	290 psi (20 bar)
ESC 100-375	750 GPM	DN150 – DN100	199–280 psi (13.7–19.3 bar)	2,900 RPM	400 psi (27.6 bar)
ESC 125-290	1,000 GPM	DN200 – DN125	101–177 psi (7–12.2 bar)	2,900 RPM	232 psi (16 bar)
ESC 125-365	1,000 GPM	DN200 – DN125	178–288 psi (12.2–19.9 bar)	2,900 RPM	348 psi (24 bar)
ESC 125-290	1,250 GPM	DN200 – DN125	97–175 psi (6.7–12 bar)	2,900 RPM	232 psi (16 bar)
ESC 125-365	1,250 GPM	DN200 – DN125	161–278 psi (11.4–19.2 bar)	2,900 RPM	348 psi (24 bar)
ESC 150-290	1,500 GPM	DN250 – DN150	98–155 psi (6.8–10.7 bar)	2,900 RPM	232 psi (16 bar)
ESC 150-360	1,500 GPM	DN250 – DN150	150–242 psi (10.4–16.7 bar)	2,900 RPM	320 psi (22.1 bar)
ESC 150-290	2,000 GPM	DN250 – DN150	94–149 psi (6.5–10.3 bar)	2,900 RPM	232 psi (16 bar)
ESC 150-360	2,000 GPM	DN250 – DN150	138–234 psi (9.5–16.2 bar)	2,900 RPM	320 psi (22.1 bar)

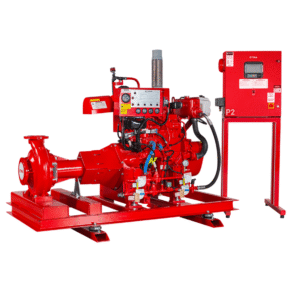

Scope of Delivery — Complete UF Series Set

Every ETNA UF Series fire pump ships as a complete factory-assembled set ready for site installation.

Fire PumpEA end-suction or ESC split-case body, sized per project hydraulic calc.

UL/FM Listed Diesel EngineFor redundant power supply or sites without reliable electrical service.

Electric MotorIEC standard motor with UL listed option available.

UL/FM Approved Control PanelElectrical (full or reduced voltage) or GDP diesel panel — NEMA 2 rated.

Jockey (Pilot) PumpPressure-maintenance pump prevents main-pump short-cycling per NFPA 20 §6.6.1.

UL/FM AccessoriesAir release valve · main relief valve · casing relief valve · flow meter (optional).

Construction & Materials

Pump BodyGGG40 ductile iron

ImpellerBronze CuSn10

ShaftAISI 420 stainless

SealingGland packing

BearingGreased, closed type

FlangesISO 7005 PN16 (or ANSI Class 300)

Bronze or corrosion-resistant materials used for all wetted elements (bolts, screws) in contact with water inside the pump. Single-suction enclosed impeller is statically balanced against axial load with wear rings and dynamically balanced with bearings.

Control Panels

UL/FM approved electrical and diesel-engine control panels, NEMA 2 rated, microprocessor-controlled.

Electrical Control Panel Microprocessor-controlled · single operator for isolating switch & circuit breaker · voltage/current display · surge arrester · pressure & event recorder · test start button · auto-transfer compatible · emergency start handle · locked-rotor & phase-reversal protection · full or reduced voltage starting · audible alarm + remote contacts.

GDP Diesel Control Panel Microprocessor-controlled · battery voltage/current display · pressure & event recorder · manual start buttons · pressure transducers + run-test solenoid externally mounted · weekly test timer · adjustable auto shut-off · sequential filling & programmable start delay timers · audible alarm + remote contacts.

Typical Applications

Sprinkler SystemsNFPA 13 wet, dry, pre-action and deluge with NFPA 20 fire pump supply.

Hydrant & StandpipeNFPA 14 standpipe risers and outdoor hydrant loops for commercial & industrial.

Foam ExtinguishingMonitor nozzles & foam-generator systems for petrochemical, hangar, tank-farm protection.

Commercial High-RiseClass I/II/III standpipe supply with diesel + electric redundancy.

Industrial & HospitalNFPA 99/101 facilities — UL/FM listed package with FM 1319 certification (PR468288).

Airport, Hotel, MallLarge-occupancy structures requiring redundant pump packages with controllers.

Pump Performance Conditions (UL / FM Requirements)

Flow at 150% Rated≥ 65% of rated pressure

Closed-Valve Pressure≤ 140% of rated pressure

Motor Power≥ Required at 150% flow

UL Listed and FM Approved pumps must meet these performance envelopes throughout the operating range, verified during pump performance testing per UL 448 and FM 1319.

Request a Quote — ETNA UF Series Fire Pump

Send your hydraulic calculation (GPM, PSI), site service requirements (electric / diesel / both for redundancy), and authority requirements (UL / FM / local AHJ). We respond within 24 hours with a complete package quote including listed pump, motor/engine, control panel, jockey pump and accessories.

Request a Quote →
