DIN / EN Valves

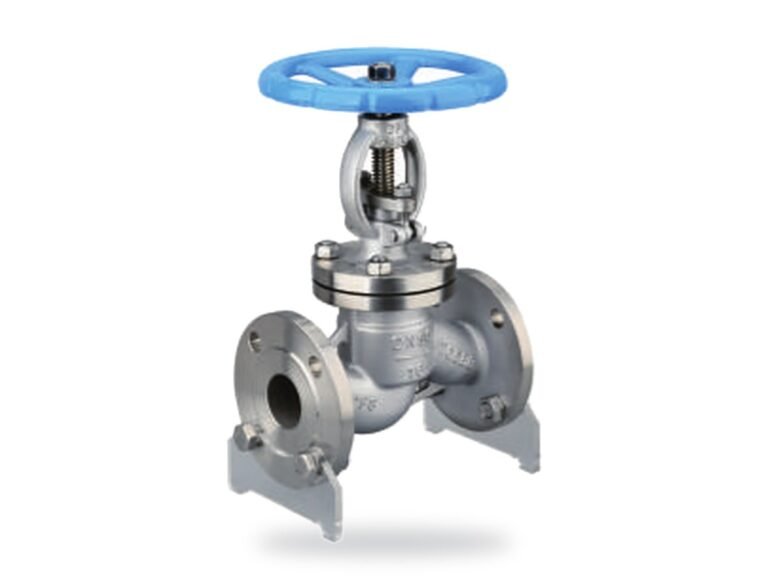

DIN / EN steel globe valves are used for isolation and flow regulation in steam, hot water and thermal oil systems in plants engineered to European standards. With EN 558 face-to-face dimensions and EN 1092-1 flanges, they allow one-for-one replacement in existing DIN lines.
Overview
A rising stem and bolted bonnet are standard; operation is by handwheel or electric actuator. On thermal oil lines where zero stem leakage is required, a bellows seal globe valve is preferred.
Technical specifications
| Pressure rating | PN16, PN25, PN40, PN64 |
|---|---|
| Standards | DIN 3356 / EN 13709; EN 558 face-to-face; EN 1092-1 flanges |
| Materials | 1.0619, 1.7357, 1.4408 and other EN materials |
| Operation | Handwheel, electric actuator |
| Testing | EN 12266-1 |
Key features
- One-for-one replacement in DIN lines
- Cr-Mo options for high temperature
- Electric actuator option for regulation
Standards and test pressures
- Design: DIN 3356 / EN 13709
- Face-to-face: DIN 3202 / EN 558
- Flanges: EN 1092-1 (DIN 2543–2547)
- Seat: hardfaced (CoCr / Stellite) seat face; nitrided stem
- Testing: EN 12266-1 (DIN 3230)
Under EN 12266-1, the hydrostatic shell test is carried out at 1.5 times the valve’s allowable pressure (PS) at 20 °C and the seat test at 1.1 times PS. The values below apply to material groups in which PS equals PN:
| Nominal pressure | Shell test | Seat test |
|---|---|---|
| PN 16 | 2.4 MPa (24 bar) | 1.76 MPa (17.6 bar) |
| PN 25 | 3.75 MPa (37.5 bar) | 2.75 MPa (27.5 bar) |
| PN 40 | 6.0 MPa (60 bar) | 4.4 MPa (44 bar) |
| PN 64 | 9.6 MPa (96 bar) | 7.04 MPa (70.4 bar) |
Documentation and testing
On industrial projects the documentation package matters as much as the valve. We confirm the certificate and test scope for every line item at quotation stage:
- EN 10204 3.1 material certificates for pressure-retaining and wetted parts, traceable by heat number
- EN 10204 3.2 with third-party inspection, on request
- Pressure test reports to API 598 or EN 12266-1: shell, seat and, where specified, gas tests
- Fire-test certificates (API 607 / ISO 10497) for fire-safe type-tested designs
- PMI reports for alloy and stainless materials
- Dimensional, visual and coating inspection records
- PED 2014/68/EU CE declaration for equipment within its scope
- NACE MR0175 / ISO 15156 compliance statement for sour (H₂S) service
Technical datasheet
Frequently Asked Questions
Can a DIN globe valve be used on thermal oil?
Yes; however, because packing leakage on thermal oil creates fire and contamination risks, bellows seal DIN globe valves are preferred.
Related products
DIN / EN Flanged Ball Valve
EN 1092-1 flanged, PN16–PN100; floating and trunnion mounted designs.
View details

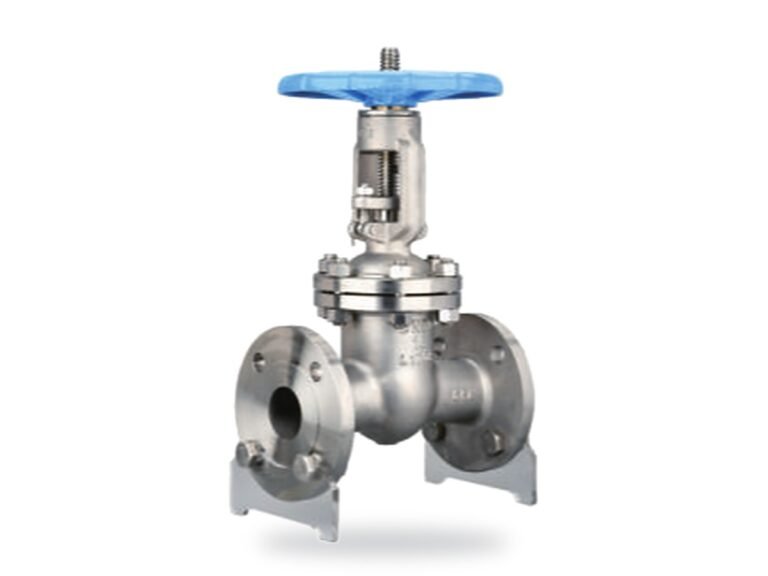

DIN / EN Gate Valve
